STM32F401CCU6 Black Pill Development Board USB-C

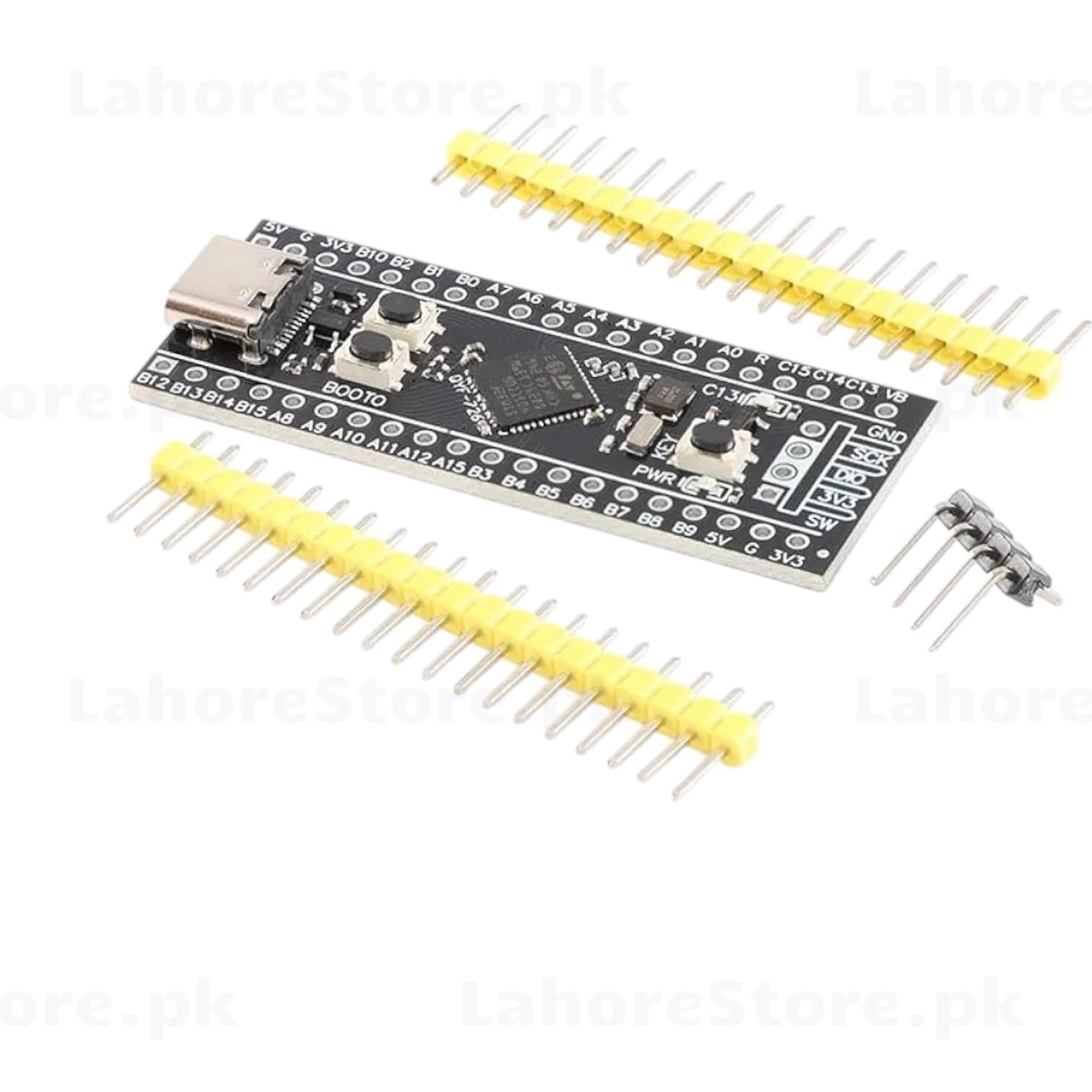

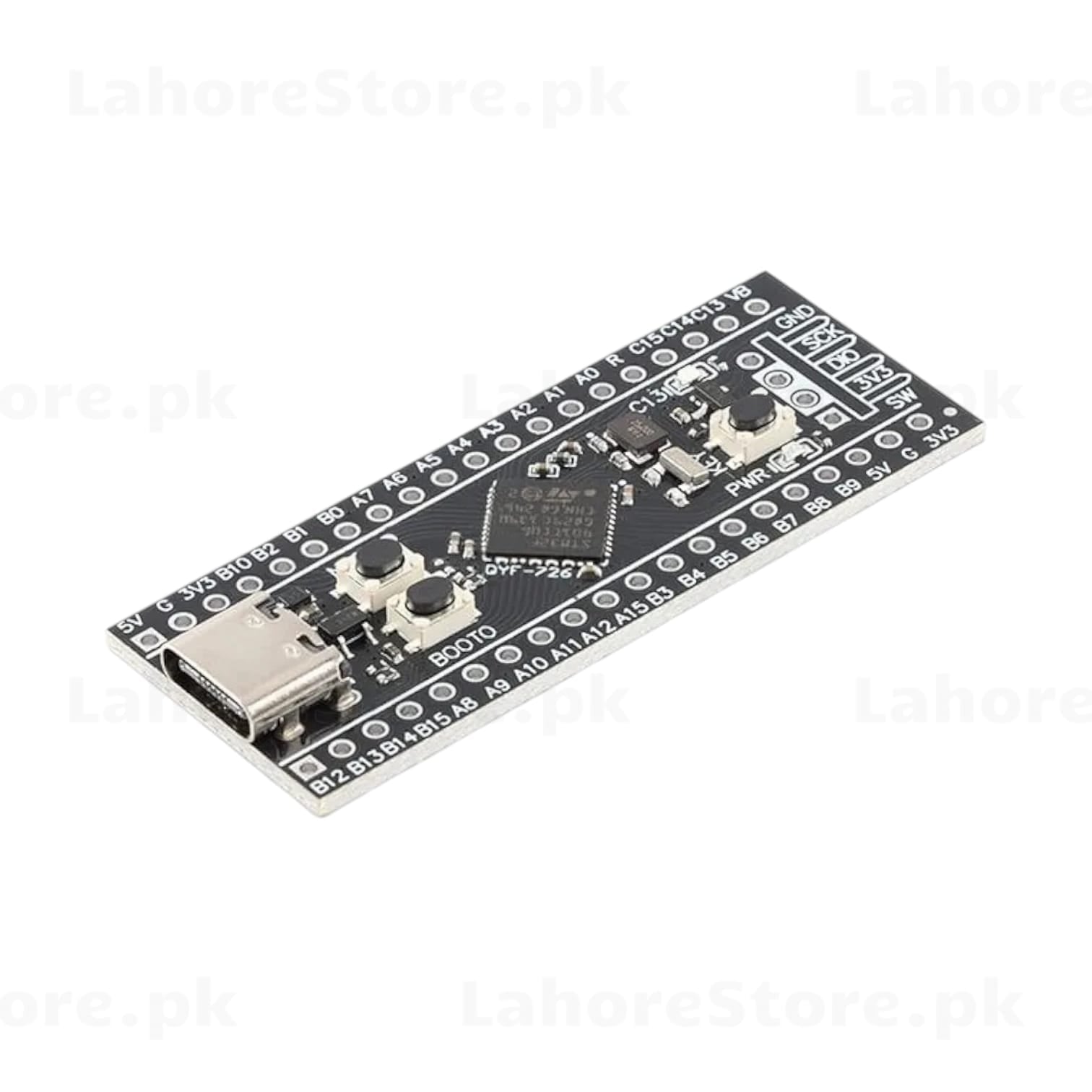

STM32F401CCU6 Black Pill Development Board with USB-C

Step up your embedded projects with the STM32F401CCU6 Black Pill — a powerful, compact ARM Cortex-M4 development board featuring a modern USB-C connector. With 84MHz clock speed, rich GPIO, and full Arduino IDE / STM32CubeIDE compatibility, this board is the go-to choice for makers and professionals who need more performance than a standard Arduino can offer.

Key Features

• Microcontroller: STM32F401CCU6 (ARM Cortex-M4, 84MHz)
• Flash: 256KB | RAM: 64KB

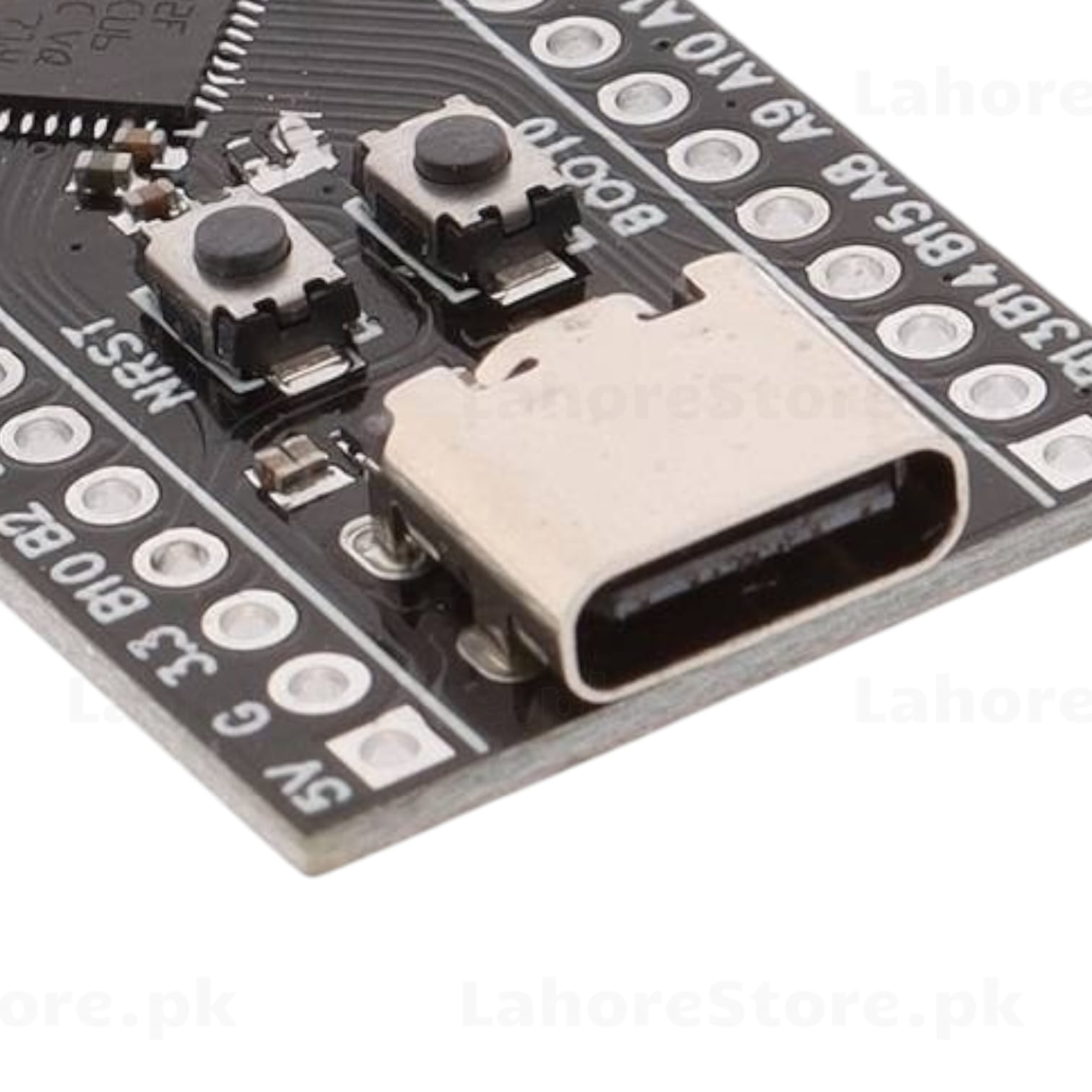

• USB-C connector for power and programming (USB DFU bootloader)
• BOOT0 and NRST buttons onboard
• GPIO pins: A0–A10, B0–B15, C13–C15 broken out to 2.54mm through-hole pads
• 3.3V and 5V power rails available
• SWD debug interface (SWDIO, SWDCLK)
• Compatible with Arduino IDE (via STM32duino), STM32CubeIDE, and PlatformIO
• Compact black PCB with clear silkscreen labeling

Specifications

• CPU: ARM Cortex-M4 @ 84MHz with FPU
• Flash: 256KB | SRAM: 64KB
• Operating Voltage: 3.3V (5V tolerant I/O)
• Input Voltage: 5V via USB-C
• Digital I/O Pins: 36+
• ADC Channels: 12-bit, up to 16 channels
• Communication: UART, SPI, I2C, USB

Applications

• Advanced Arduino projects requiring more speed and memory
• USB HID / CDC device development
• Motor control and robotics
• IoT and wireless projects (with external modules)
• Signal processing and data logging
