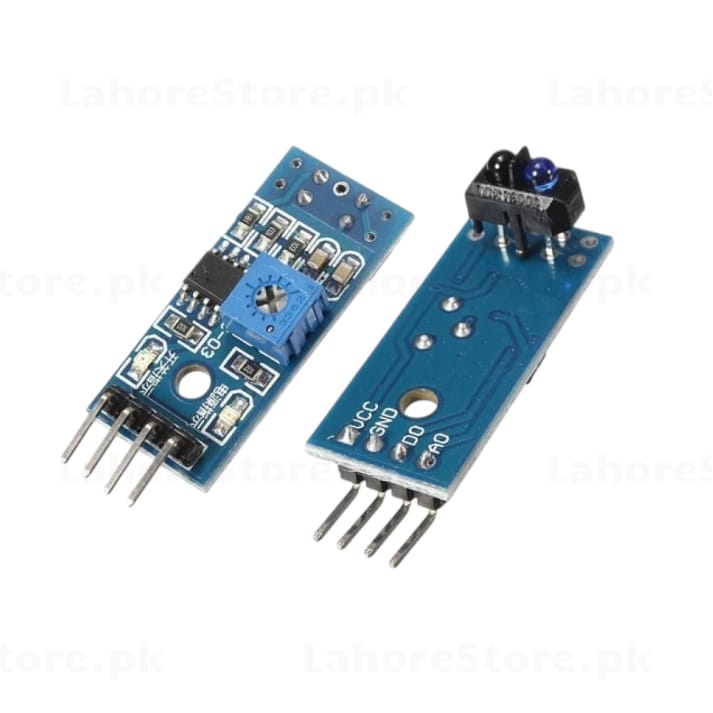

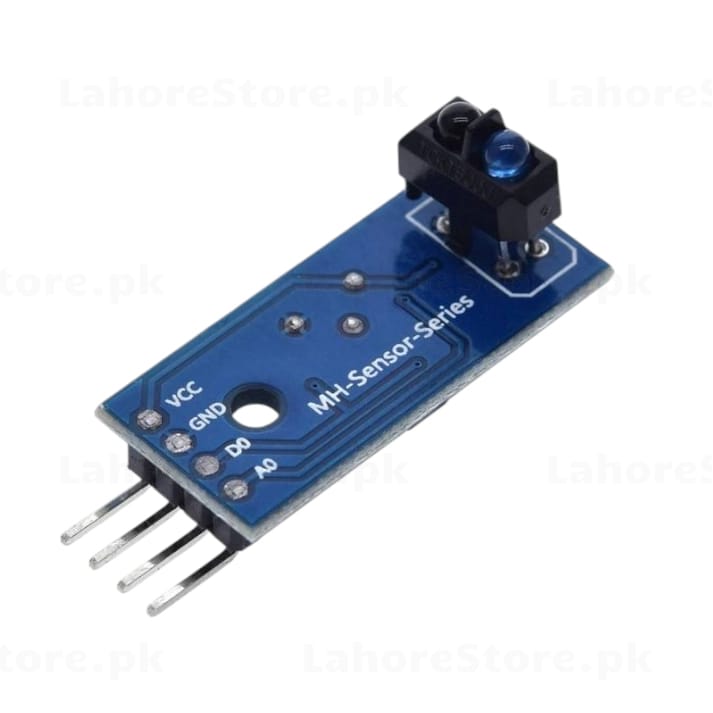

TCRT5000 IR Infrared Line Tracking Sensor Module - MH Sensor Series

TCRT5000 IR Infrared Line Tracking Sensor Module - MH Sensor Series

Detect black lines on white surfaces and build smarter robots with the TCRT5000 infrared reflective sensor module. A staple component in line follower robots, this module provides both digital (DO) and analog (AO) outputs - giving you precise control over detection sensitivity via the onboard potentiometer.

Key Features

• TCRT5000 reflective IR sensor - reliable line and surface detection
• Dual output: Digital (DO) and Analog (AO) - flexible for any project
• Onboard blue potentiometer - adjustable detection sensitivity
• Blue indicator LED - visual feedback when line/obstacle is detected
• 4-pin interface: VCC, GND, DO, AO - easy to connect to any microcontroller
• Compatible with Arduino, ESP32, ESP8266, Raspberry Pi and more
• Compact blue PCB with mounting hole for easy installation

Specifications

• Sensor IC: TCRT5000 Reflective IR Sensor
• Operating Voltage: 3.3V - 5V DC
• Output Type: Digital (DO) + Analog (AO)
• Detection Distance: 1mm - 8mm (adjustable)
• Interface Pins: VCC, GND, DO, AO
• Sensitivity: Adjustable via onboard potentiometer
• PCB Color: Blue (MH-Sensor-Series)
• PCB Size: ~43mm x 10mm

Perfect For

• Line Follower Robots
• Obstacle and Edge Detection Systems
• Arduino / ESP32 Robotics Projects
• Speed and RPM Measurement (encoder disc)
• Object Proximity Detection
• Smart Car and Sumo Robot Builds

Order now and give your robot the eyes it needs to follow any line with precision.
