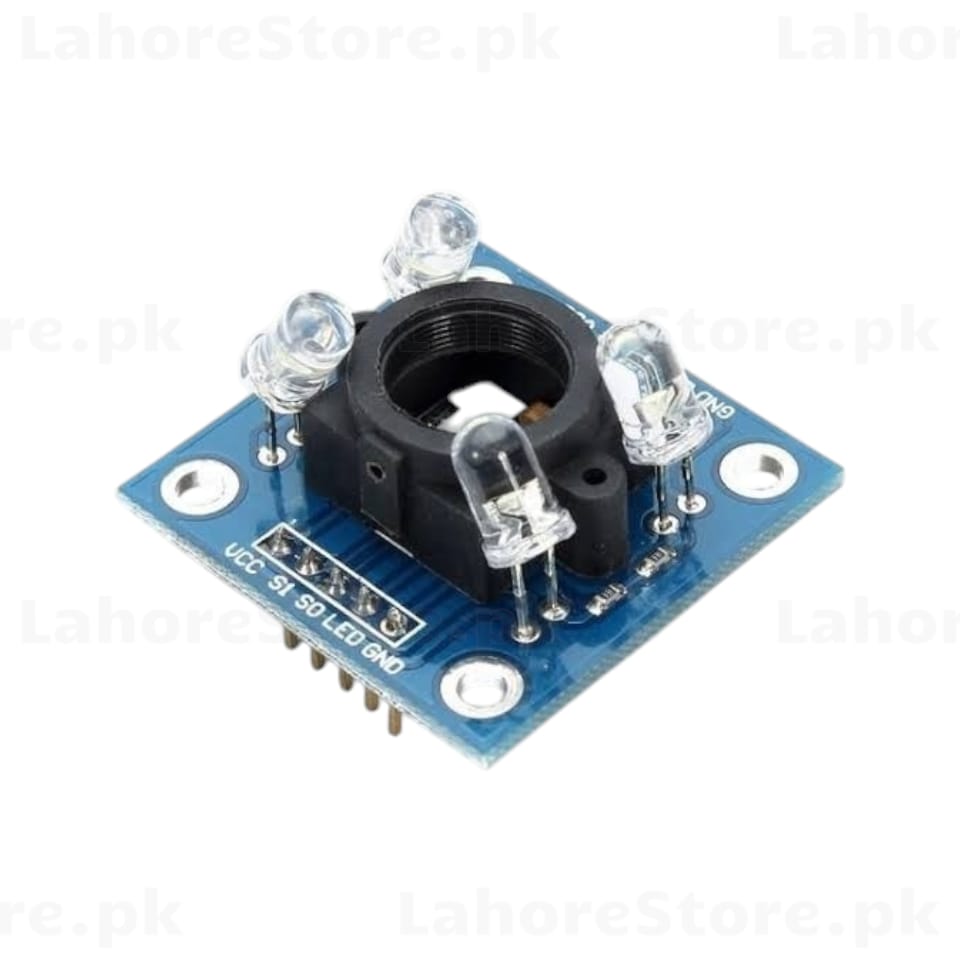

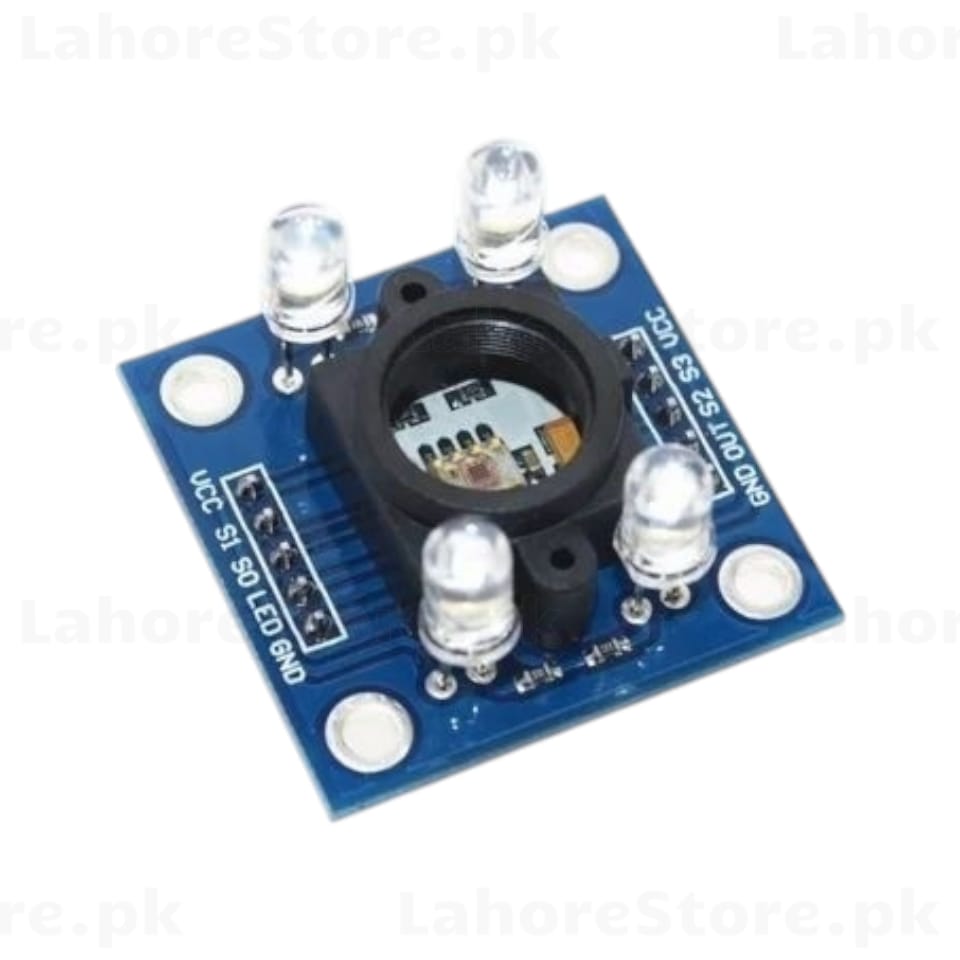

TCS3200 Color Sensor Module for Arduino

The TCS3200 Color Sensor Module is a programmable color light-to-frequency converter that detects and measures the intensity of light across red, green, blue, and clear channels. It features four white LEDs for illumination and outputs a square wave with frequency proportional to the detected color intensity.

• Sensor IC: TCS3200 / TCS230
• Interface: 6-pin header (VCC, S1, S0, LED, GND + OUT, S2, S3)
• Operating Voltage: 3.3V – 5V
• Output: Square wave (frequency proportional to light intensity)
• 4 white LEDs for built-in illumination
• Mounting holes for easy installation
• Compatible with Arduino, Raspberry Pi, ESP32, and other microcontrollers

Ideal for color sorting, object detection, line following robots, and any project requiring color recognition.
