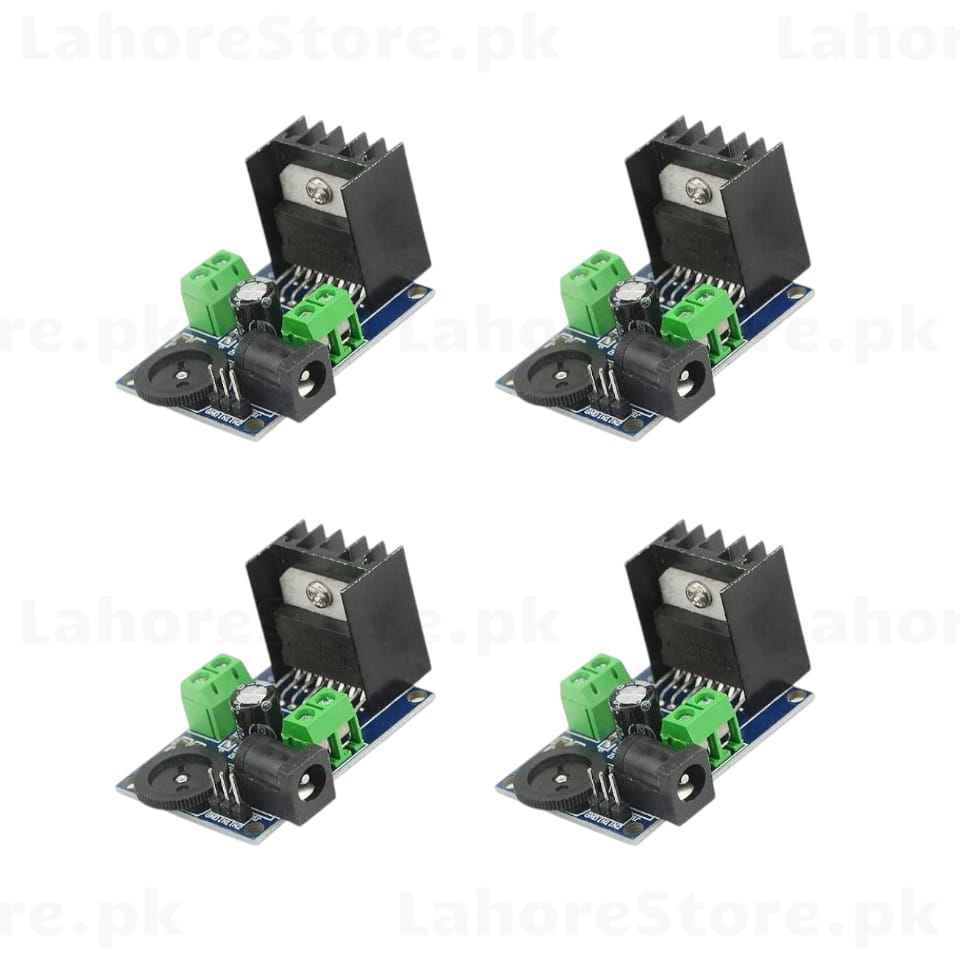

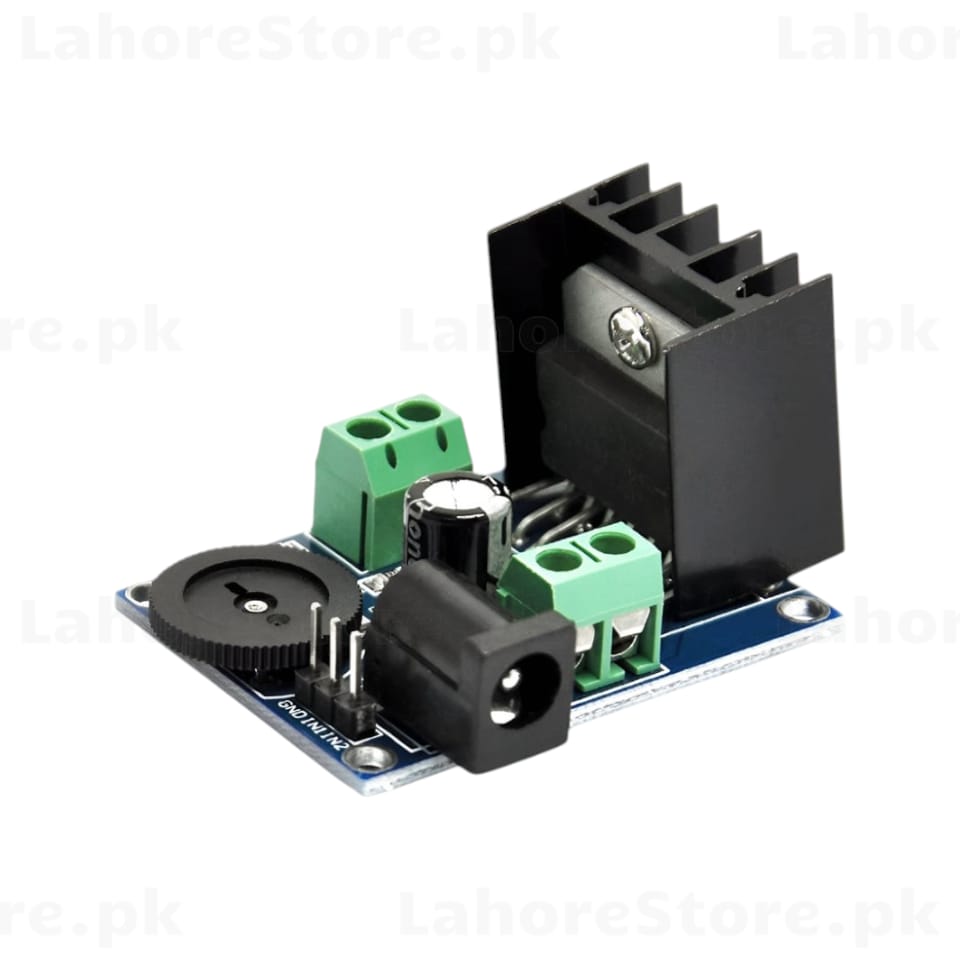

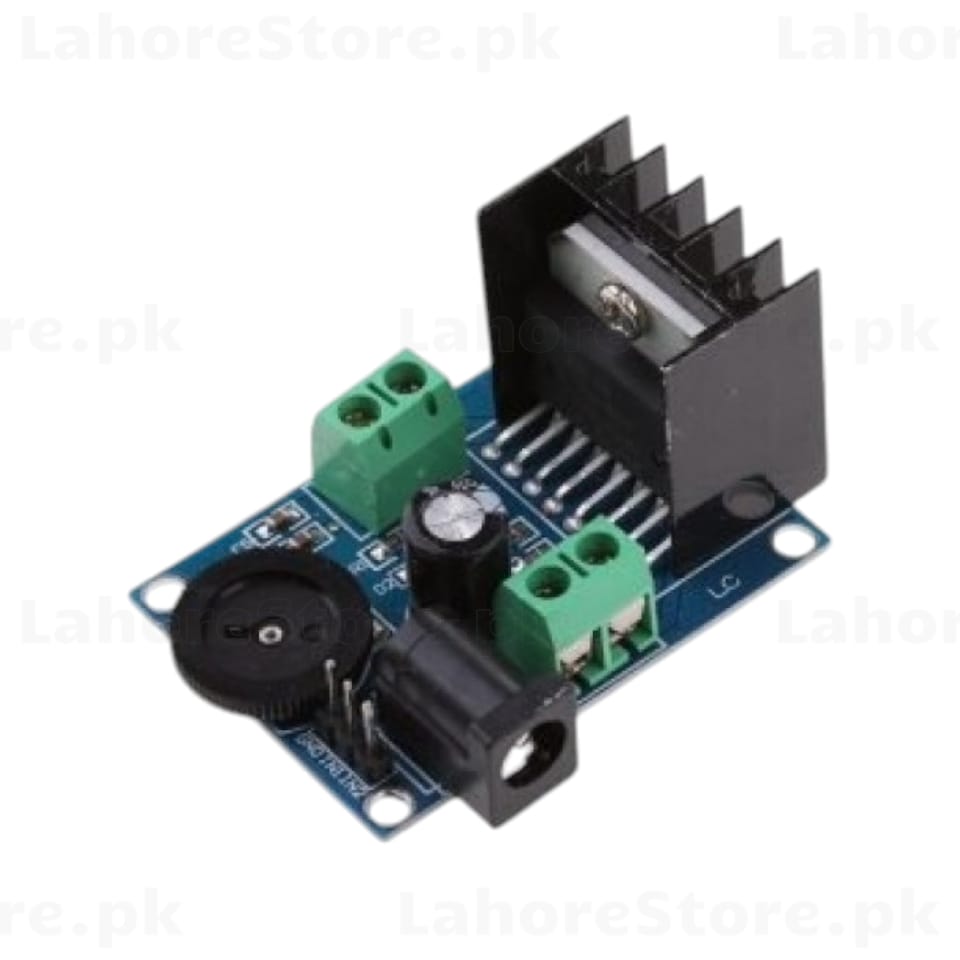

TDA7297 15W+15W Dual Channel Stereo Audio Amplifier Module

The TDA7297 Audio Amplifier Module is a ready-to-use stereo amplifier board based on the TDA7297 IC, delivering up to 15W + 15W of output power in dual channel configuration. It features a built-in heatsink for thermal management, onboard volume potentiometer, DC barrel jack power input, and screw terminal connectors for easy speaker and audio connections.

• IC: TDA7297
• Output Power: 15W + 15W (dual channel stereo)
• Supply Voltage: 6V – 18V DC
• Audio Input: 3.5mm AUX jack + screw terminals (GND, IN1, IN2)
• Speaker Output: Screw terminal connectors (left & right)
• Onboard volume control potentiometer
• Heatsink included for thermal protection
• Mounting holes for easy installation
• Low noise, low distortion audio output

Ideal for DIY speakers, home audio systems, Arduino audio projects, and any application requiring a compact stereo amplifier.
