Tiny RTC - I2C Real-Time Clock Module

The Tiny RTC I2C Real-Time Clock Module is a compact board for adding timekeeping to microcontroller projects. It features a coin-cell holder and through-hole connection points for integration into clocks, timers and data-logging systems.

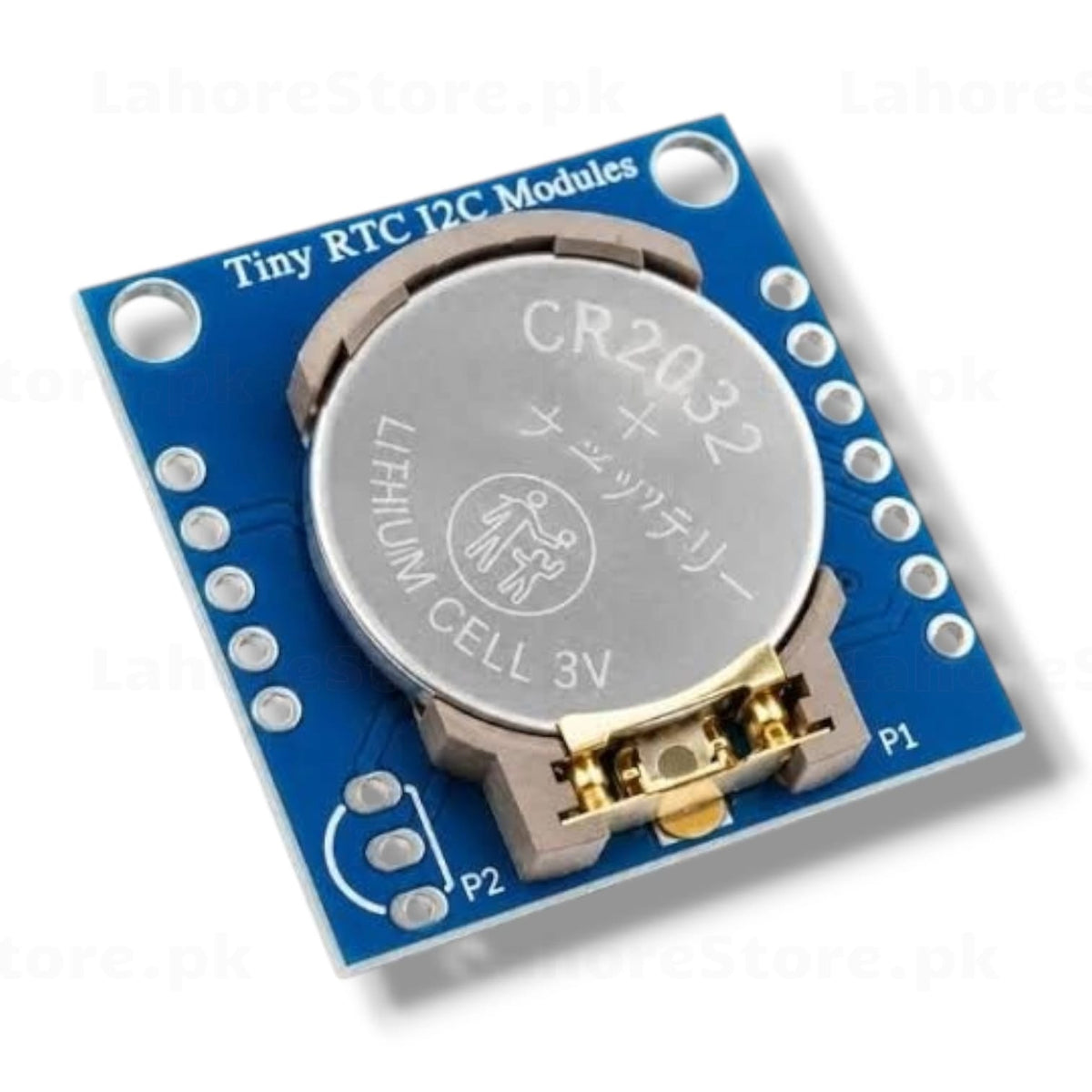

Visible board features

• Board marked Tiny RTC I2C Modules.
• Coin-cell battery holder for a backup-power arrangement.
• Through-hole connection points along both sides of the board.
• Compact blue PCB with mounting holes.

Before connecting

The exact RTC chip, pinout, supply voltage and battery-charging circuit are not confirmed from this view. Verify these details before selecting a library or connecting power. Check the battery requirements before fitting a cell; do not use a non-rechargeable cell with an enabled charging circuit. The photographed battery does not establish the battery supplied with the module.
