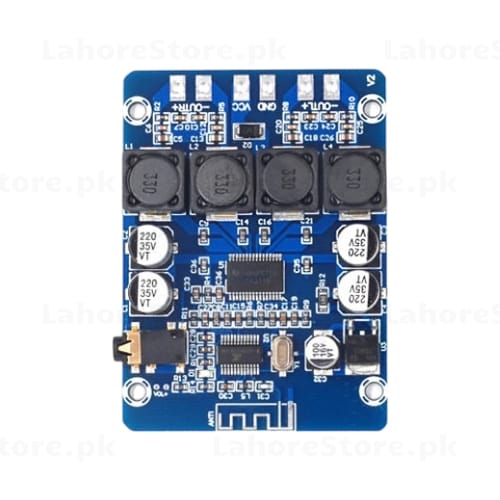

TPA3116D2 Dual Channel Digital Audio Amplifier Board 2x50W
TPA3116D2 Dual Channel Digital Audio Amplifier Board 2x50W
Regular price
Rs.1,370
Regular price
Sale price
Rs.1,370
Shipping calculated at checkout.
No reviews
Quantity
Couldn't load pickup availability
- TPA3116D2 Dual Channel Class D Digital Audio Amplifier Board
- A high-efficiency Class D stereo amplifier board based on the TPA3116D2 chip, delivering up to 2×50W of clean audio output. Ideal for DIY audio projects, speaker builds, and embedded audio systems.
- Key Features
- Dual channel (stereo) Class D amplifier
- Output power: 2 × 50W (at 12–24V supply)
- Based on TPA3116D2 IC by Texas Instruments
- High efficiency: up to 90%, minimal heat generation
- Wide supply voltage range: 4.5V – 27V DC
- Built-in short circuit and thermal protection
- Onboard filter inductors and capacitors for clean output
- Compact PCB form factor — easy to integrate
- Screw terminal connectors for speaker and power input
- Specifications
- Chip: TPA3116D2 (Texas Instruments)
- Channels: 2 (Stereo)
- Max Output Power: 2 × 50W
- Supply Voltage: 4.5V – 27V DC
- Input Impedance: 10kΩ
- SNR: ≥ 90dB
- PCB Dimensions: ~55 × 40mm
- Applications
- DIY speaker and subwoofer builds
- Raspberry Pi / Arduino audio projects
- Portable Bluetooth speaker systems
- Home audio amplification
