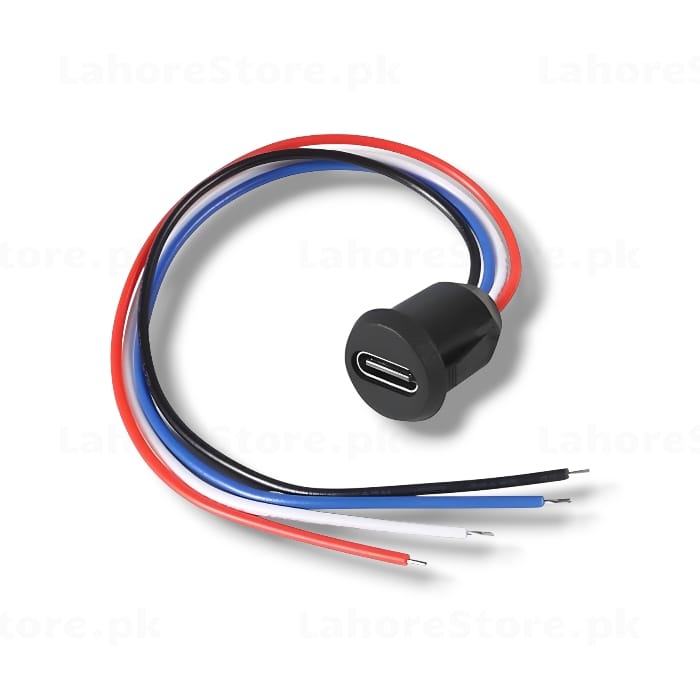

USB Type-C Female Panel Mount Connector with Pigtail Wires

USB Type-C Female Panel Mount Connector with Pigtail Wires

A compact USB Type-C female panel mount connector with pre-soldered 4-wire pigtail (red, black, blue, white). Designed for easy integration into enclosures, panels, and DIY electronics projects where a flush-mount USB-C charging or data port is needed.

Key Features

• USB Type-C female connector with round panel mount housing
• Pre-soldered 4-wire pigtail: Red (VBUS), Black (GND), Blue (D-), White (D+)
• Compact black housing for clean panel installation
• Suitable for charging and USB 2.0 data transfer
• Easy to wire into custom enclosures and projects

Specifications

• Connector Type: USB Type-C Female
• Mount Type: Panel mount (round)
• Wires: 4-core pigtail (Red, Black, Blue, White)
• Housing Color: Black
• Standard: USB 2.0

Applications

• DIY enclosure USB-C charging ports
• Robotics and embedded systems
• Custom power banks and battery packs
• 3D printer and CNC control panel USB ports
• Arduino / Raspberry Pi project enclosures
