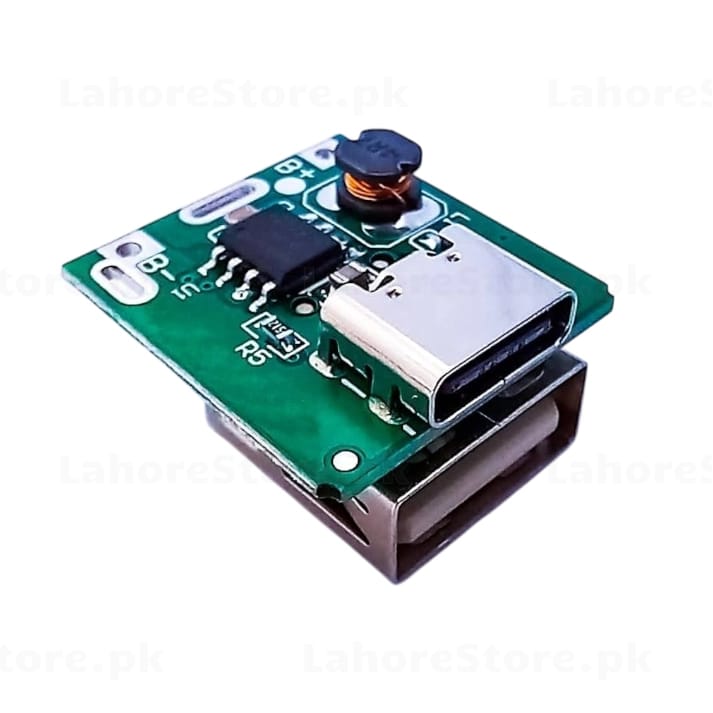

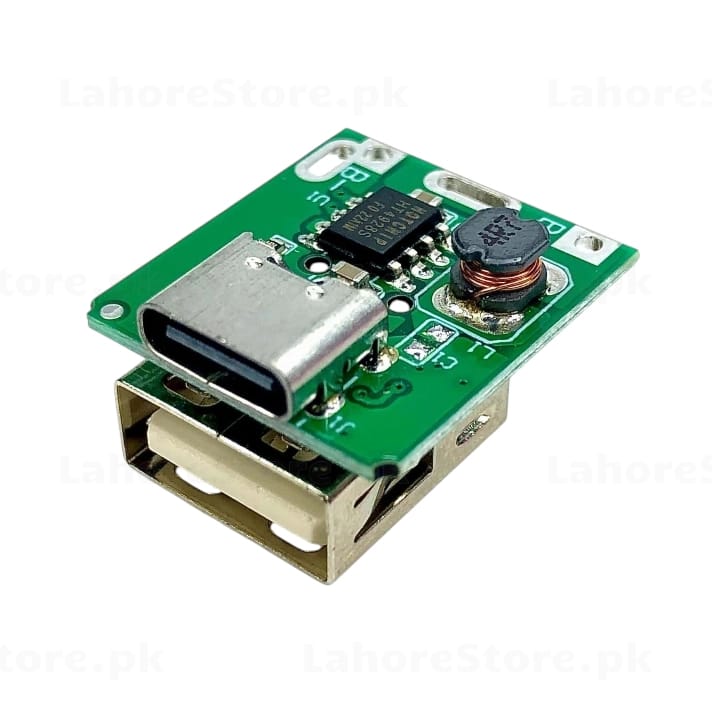

USB Type-C Power Bank Module - 5V Boost Converter with USB-A Output

USB Type-C Power Bank Module - 5V Boost Converter with USB-A Output

Build your own compact power bank with this all-in-one Li-ion charging and boost converter module. Charge via USB-C input and deliver stable 5V output through the USB-A port - perfect for DIY portable chargers, solar battery packs, and embedded power supply projects.

Key Features

• USB Type-C input for charging the Li-ion battery - modern and reversible connector
• USB Type-A output - charge phones, power Arduino, ESP32 and other 5V devices
• Built-in boost converter IC - steps up battery voltage to stable 5V output
• Integrated battery protection - overcharge, over-discharge and short circuit protection
• Compact green PCB with solder pads (B+, B-) for direct battery connection
• No external components needed - complete charge and discharge circuit on one board

Specifications

• Input: USB Type-C (5V)
• Output: USB Type-A (5V)
• Battery Connection: B+ / B- solder pads (3.7V Li-ion / LiPo)
• Output Current: Up to 1A
• Charging Current: Up to 1A
• Boost IC: Integrated step-up converter
• Protection: Overcharge, over-discharge, short circuit
• PCB Size: ~34mm x 25mm

Perfect For

• DIY Power Bank and Portable Charger Projects
• Solar Battery Pack with USB-C Charging
• Arduino / ESP32 Portable Power Supply
• Li-ion Battery Charge and Discharge Circuits
• Wearable Electronics and IoT Battery Modules

Order now and build your own compact, reliable power bank with ease.
