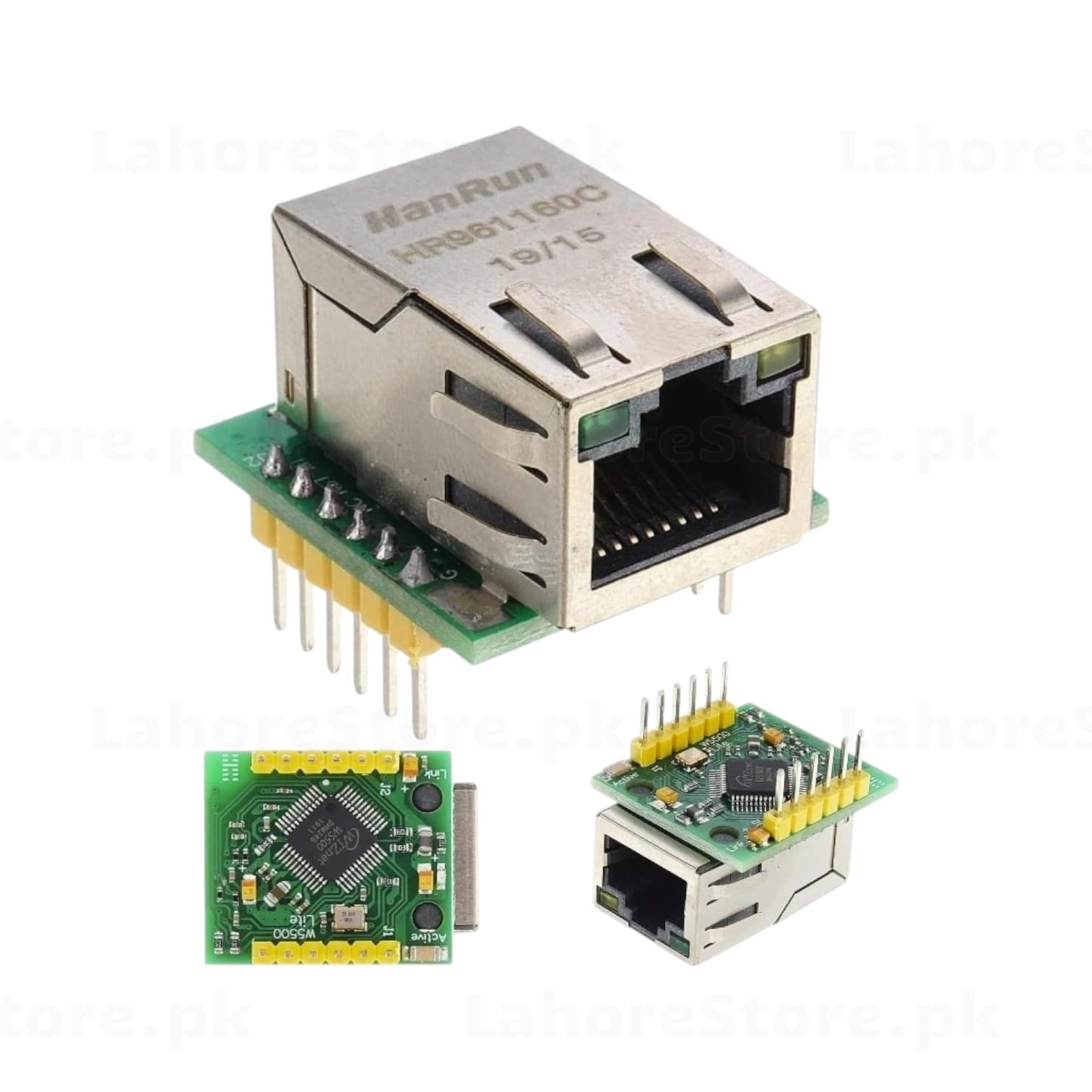

• W5500 Lite Ethernet Module with RJ45 - Multiple Views

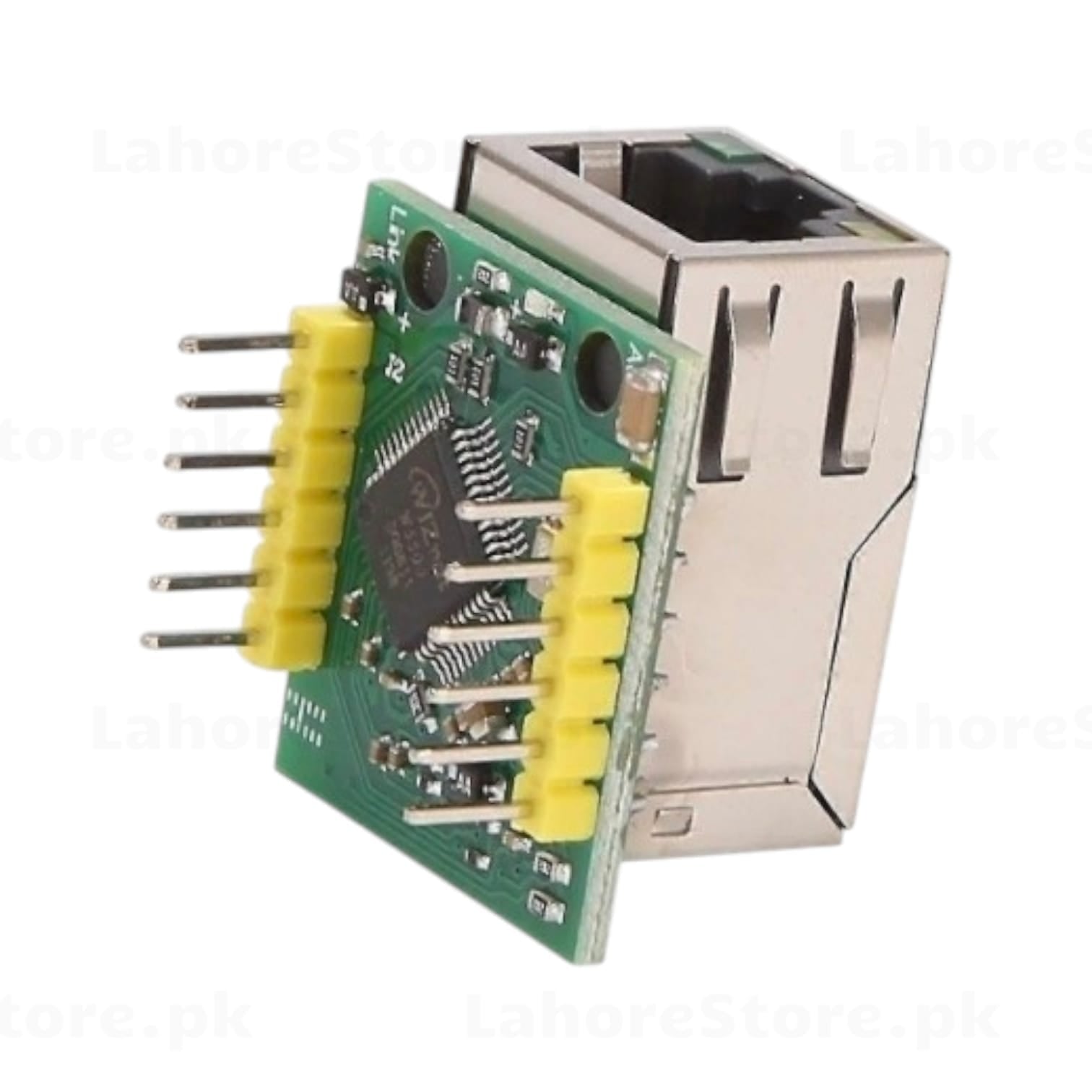

  • W5500 Lite Ethernet Module Side View
1 2

W5500 Lite SPI Ethernet Module with RJ45 Connector

W5500 Lite SPI Ethernet Module with RJ45 Connector

Rs.1,350
Rs.1,350
Sale Sold out
Shipping calculated at checkout.

Add wired Ethernet connectivity to your microcontroller projects with the compact W5500 Lite Ethernet Module. Based on the WIZnet W5500 chip, it communicates via SPI and supports TCP/IP hardware offloading — perfect for Arduino, STM32, and other embedded systems.

  • Chip: WIZnet W5500
  • Interface: SPI (up to 80MHz)
  • Connector: RJ45 with integrated magnetics (HanRun HR961160C)
  • Supports: TCP, UDP, ICMP, IPv4, ARP, IGMP, PPPoE
  • Simultaneous socket connections: 8
  • Operating Voltage: 3.3V
  • Link/Activity LEDs onboard
  • Compact size, breadboard-friendly pin headers
  • Compatible with Arduino Ethernet library (W5500)
