WINSINN 70mm Brushless DC Fan 5V/12V/24V – Dual Ball Bearing

WINSINN 70mm Brushless DC Fan

High-performance 70mm brushless DC cooling fan by WINSINN featuring dual ball bearing for long service life and reliable operation. Standard 25mm depth with 70x70mm frame. Available in 5V, 12V, and 24V. FCC, CE, and RoHS certified.

Key Features

• 70mm x 70mm x 25mm form factor
• Brushless DC motor for extended lifespan
• Dual ball bearing – low noise, high durability
• Available in 5V, 12V, and 24V

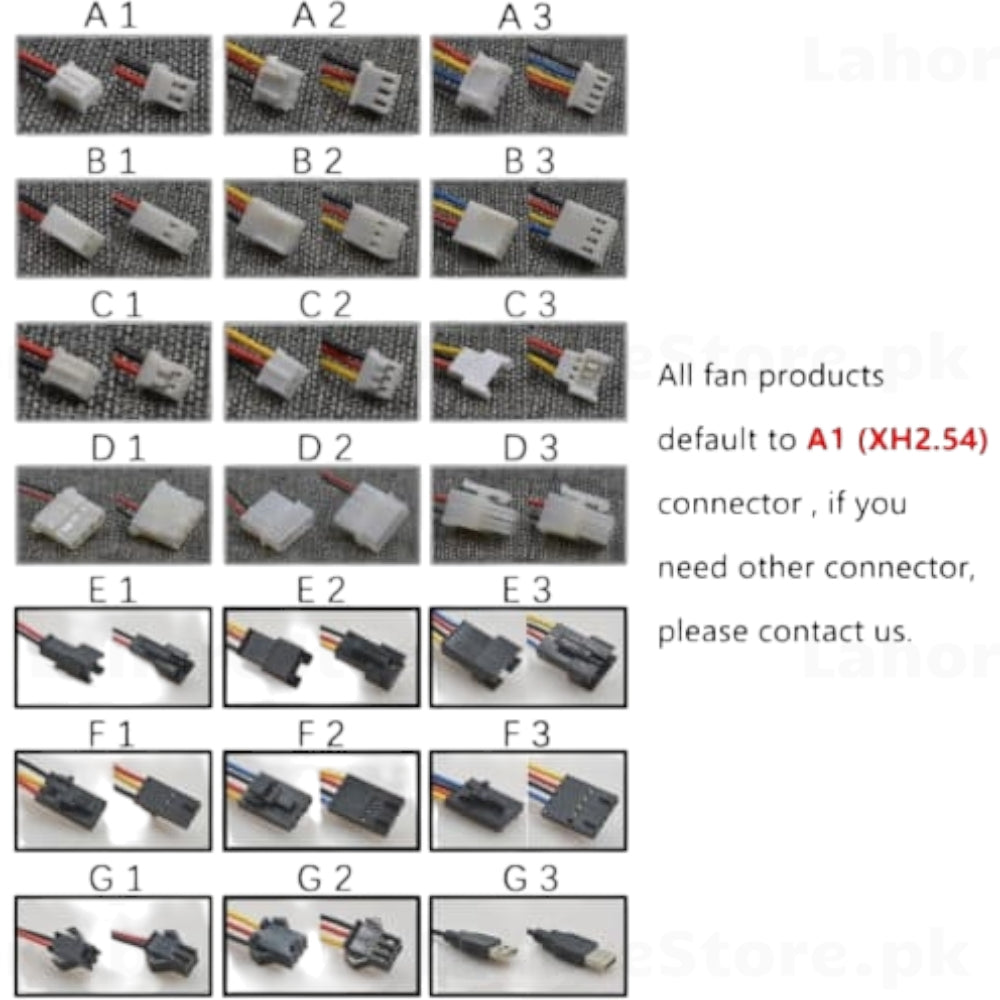

• Default connector: A1 (XH2.54) – other connectors available on request
• FCC, CE, RoHS certified

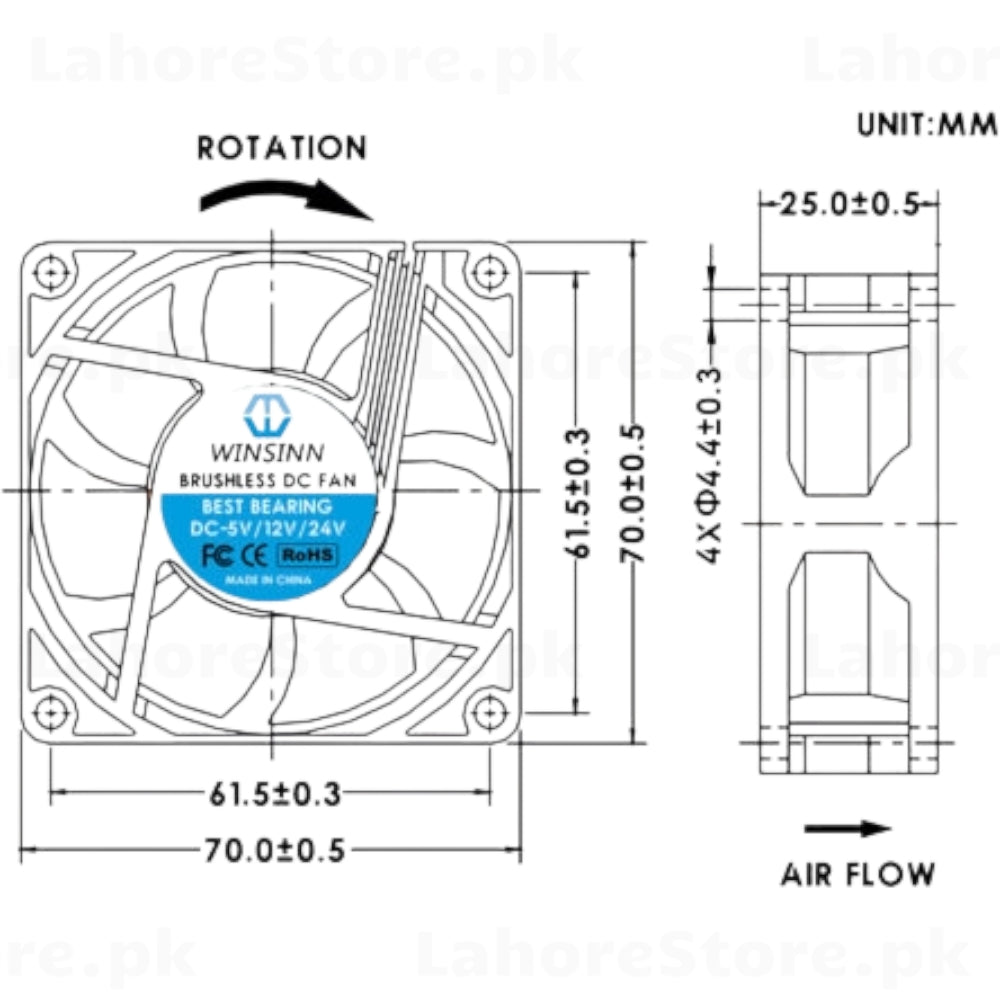

Specifications

• Dimensions: 70 x 70 x 25mm
• Outer Frame: 70mm (±0.5mm)
• Mounting Hole Spacing: 61.5mm (±0.3mm)
• Mounting Hole Diameter: 4.4mm (x4)
• Thickness: 25mm (±0.5mm)
• Voltage: DC 5V / 12V / 24V
• Bearing Type: Dual Ball Bearing
• Connector: XH2.54 (default)
• Brand: WINSINN

Applications

• 3D printer cooling
• PC case and component cooling
• Electronics enclosures and control boxes
• DIY electronics and robotics
• Industrial ventilation
