WINSINN 80mm Brushless DC Fan 5V/12V/24V – Dual Ball Bearing

WINSINN 80mm Brushless DC Fan

High-performance 80mm brushless DC cooling fan by WINSINN with dual ball bearing for extended lifespan and reliable operation. Ultra-slim 10.6mm thickness makes it ideal for space-constrained builds. Available in 5V, 12V, and 24V. FCC, CE, and RoHS certified.

Key Features

• 80mm x 80mm x 10.6mm slim form factor
• Brushless DC motor for long service life
• Dual ball bearing – low noise, high durability
• Available in 5V, 12V, and 24V

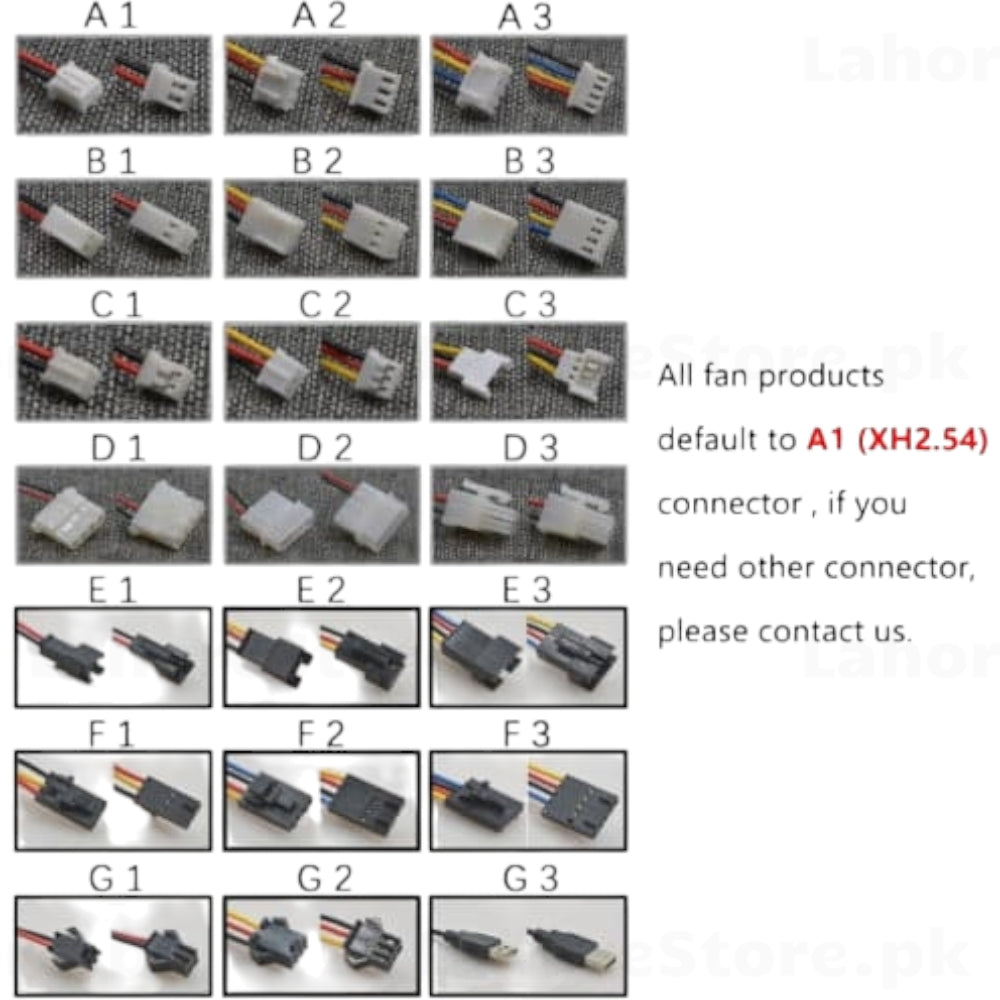

• Default connector: A1 (XH2.54) – other connectors available on request
• FCC, CE, RoHS certified

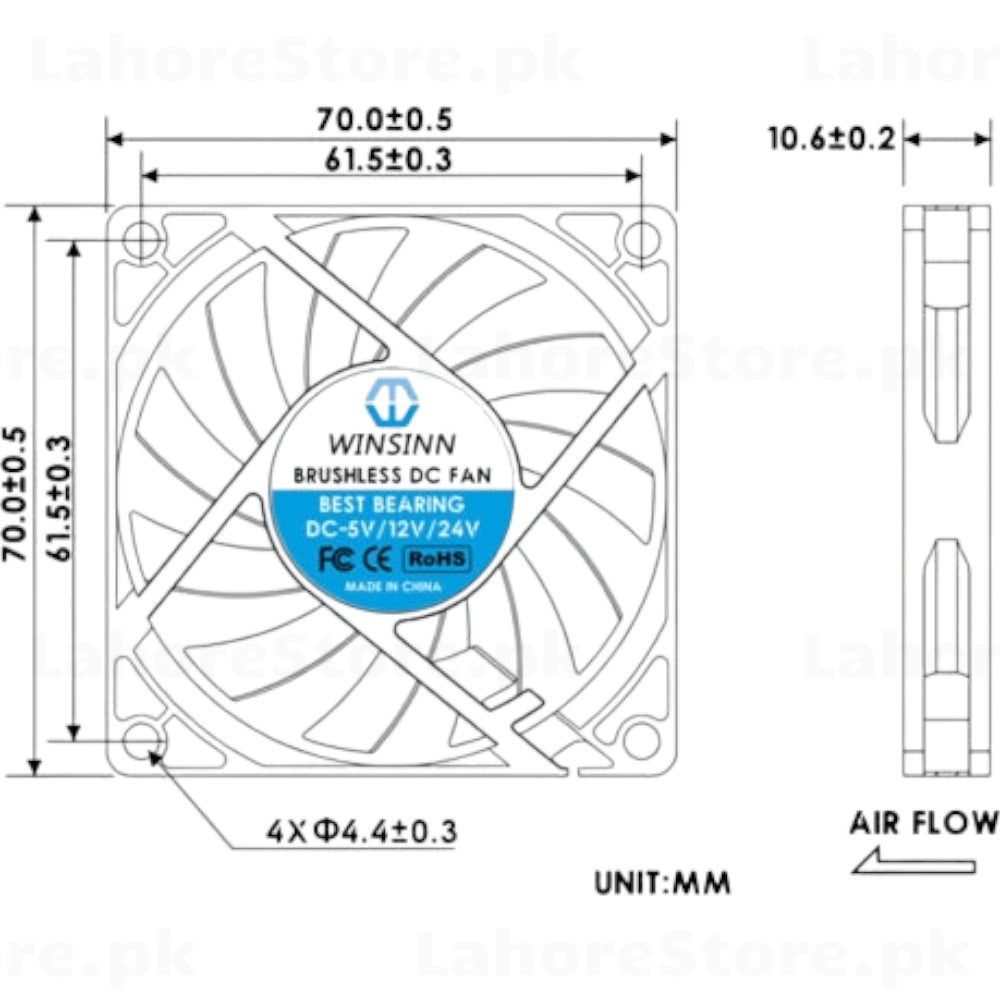

Specifications

• Dimensions: 70 x 70 x 10.6mm
• Outer Frame: 70mm (±0.5mm)
• Mounting Hole Spacing: 61.5mm (±0.3mm)
• Mounting Hole Diameter: 4.4mm (x4)
• Thickness: 10.6mm (±0.2mm)
• Voltage: DC 5V / 12V / 24V
• Bearing Type: Dual Ball Bearing
• Connector: XH2.54 (default)
• Brand: WINSINN

Applications

• 3D printer cooling (hotend, electronics bay)
• Slim PC case and component cooling
• Electronics enclosures and control boxes
• DIY electronics and robotics
• Industrial ventilation
