WINSINN 90mm Brushless DC Fan 5V/12V/24V – Sleeve Bearing

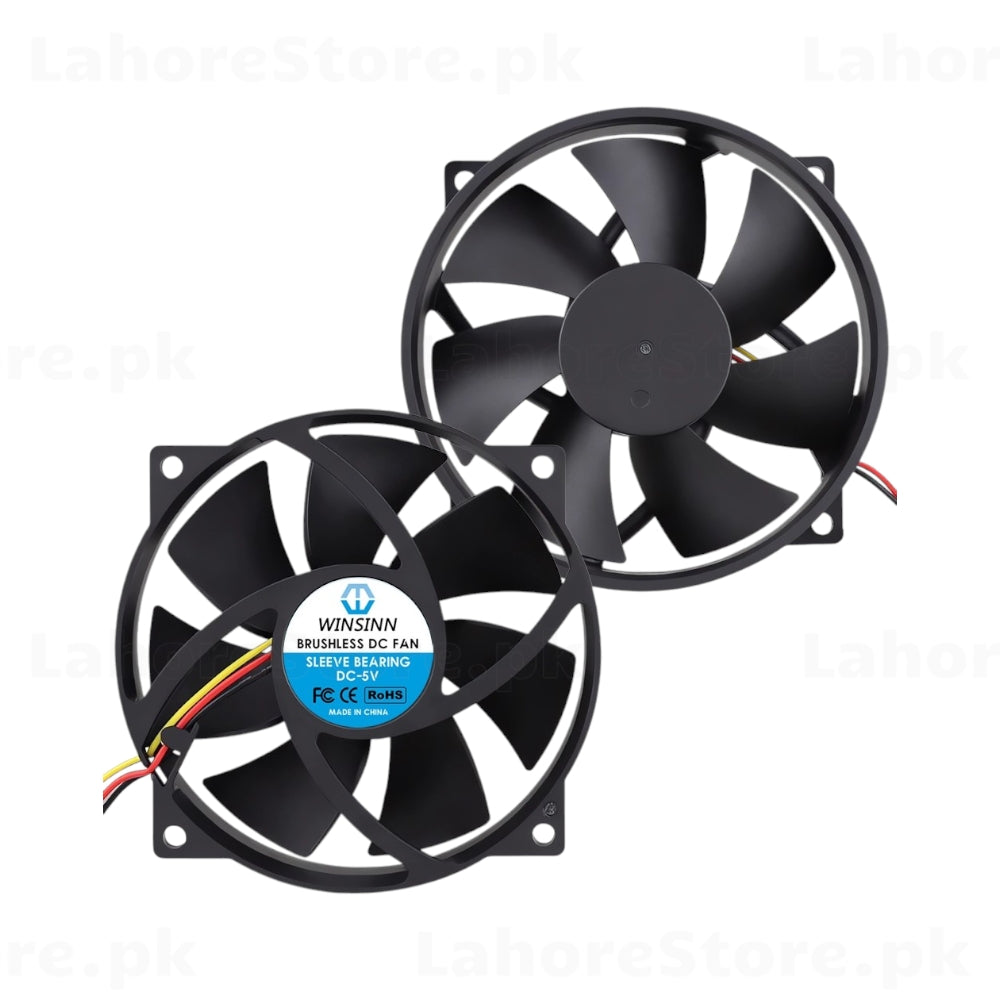

WINSINN 90mm Brushless DC Fan

High-performance 90mm brushless DC cooling fan by WINSINN, featuring a sleeve bearing for quiet and efficient operation. Available in 5V, 12V, and 24V variants. Suitable for 3D printers, electronics enclosures, PC cooling, and DIY projects. FCC, CE, and RoHS certified.

Key Features

• 90mm x 90mm x 25mm form factor
• Brushless DC motor for long service life
• Sleeve bearing – quiet and smooth operation
• Available in 5V, 12V, and 24V

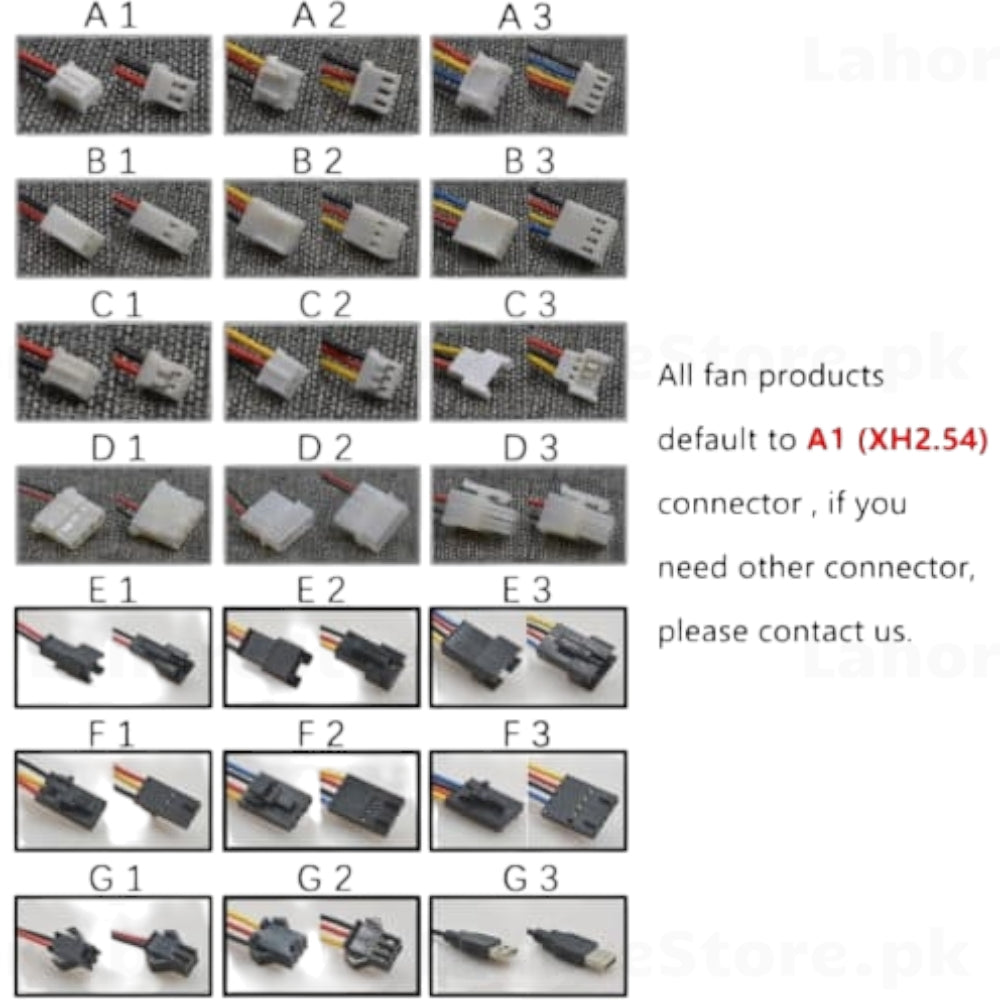

• Default connector: A1 (XH2.54) – other connectors available on request
• 300mm lead wire length
• FCC, CE, RoHS certified

Specifications

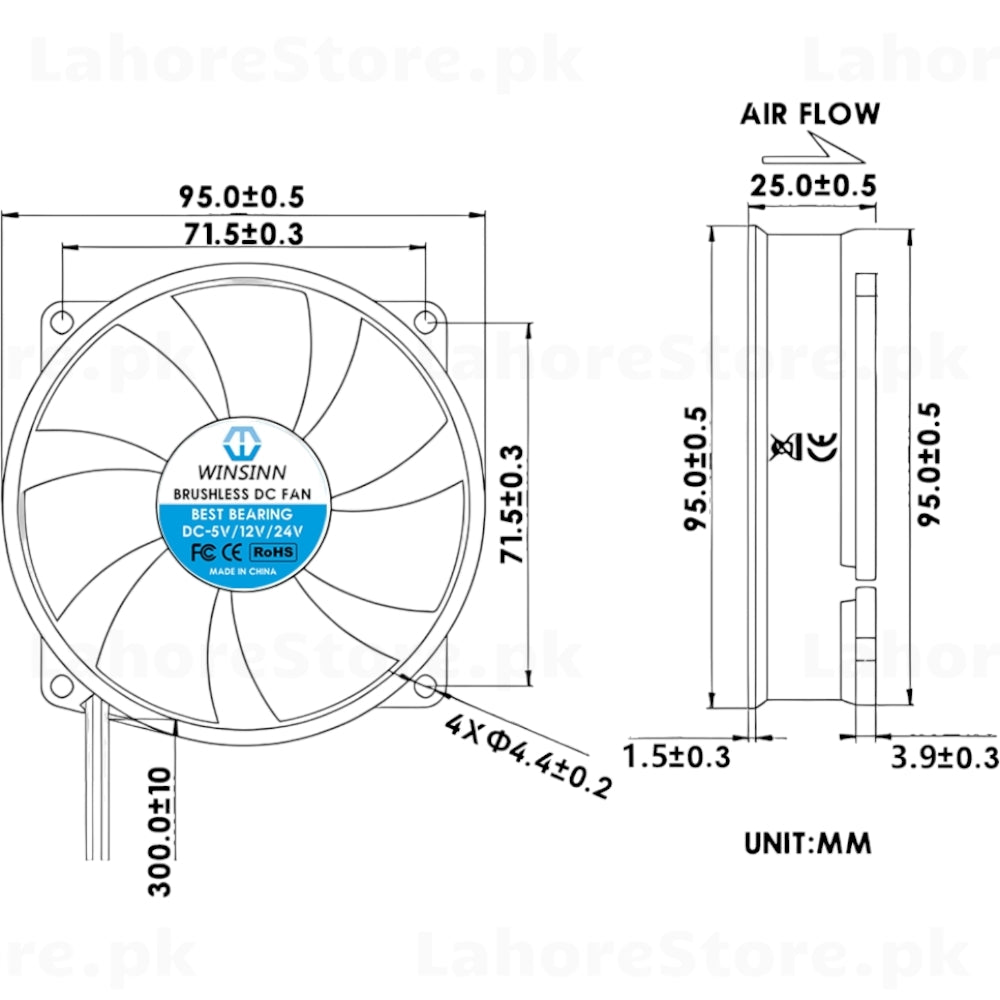

• Dimensions: 95 x 95 x 25mm (±0.5mm)
• Fan Diameter: 90mm
• Mounting Hole Spacing: 71.5mm (±0.3mm)
• Mounting Hole Diameter: 4.4mm (x4)
• Voltage: DC 5V / 12V / 24V
• Bearing Type: Sleeve Bearing
• Wire Length: 300mm (±10mm)
• Connector: XH2.54 (default)
• Brand: WINSINN

Applications

• 3D printer cooling (hotend, electronics)
• PC case and component cooling
• Electronics enclosures and control boxes
• DIY electronics and robotics
• Industrial ventilation
