WS2811 RGB LED Breakout Board

WS2811 RGB LED Breakout Board

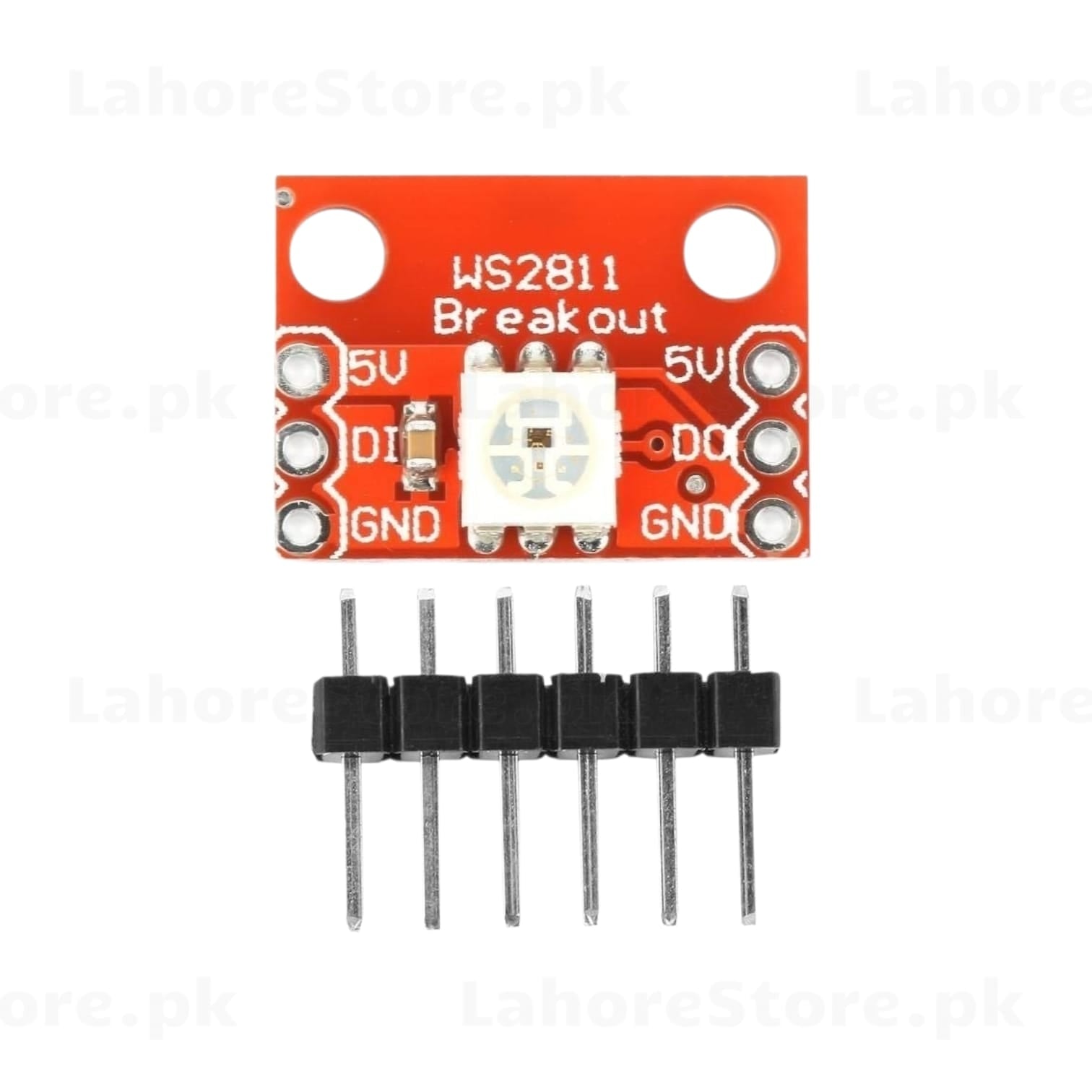

The WS2811 Breakout Board makes it easy to prototype and chain individually addressable RGB LEDs. Built around the WS2811 IC with an integrated RGB LED, this compact red PCB breaks out all the necessary connections — power, data in, data out, and ground — to standard through-hole pads compatible with the included 6-pin male header.

Key Features

• Onboard WS2811 driver IC with integrated RGB LED (SMD 5050)
• Chainable design: Data Out (DO) connects to Data In (DI) of the next board
• Operating voltage: 5V
• Single-wire control protocol (compatible with NeoPixel libraries)
• Breakout pads: 5V, DI, GND (input side) | 5V, DO, GND (output side)
• Includes 6-pin male header for easy breadboard use
• Mounting holes for secure installation

Applications

• LED strip prototyping and testing
• Arduino / Raspberry Pi lighting projects
• Wearable electronics
• DIY NeoPixel-compatible displays
• Robotics and maker projects
