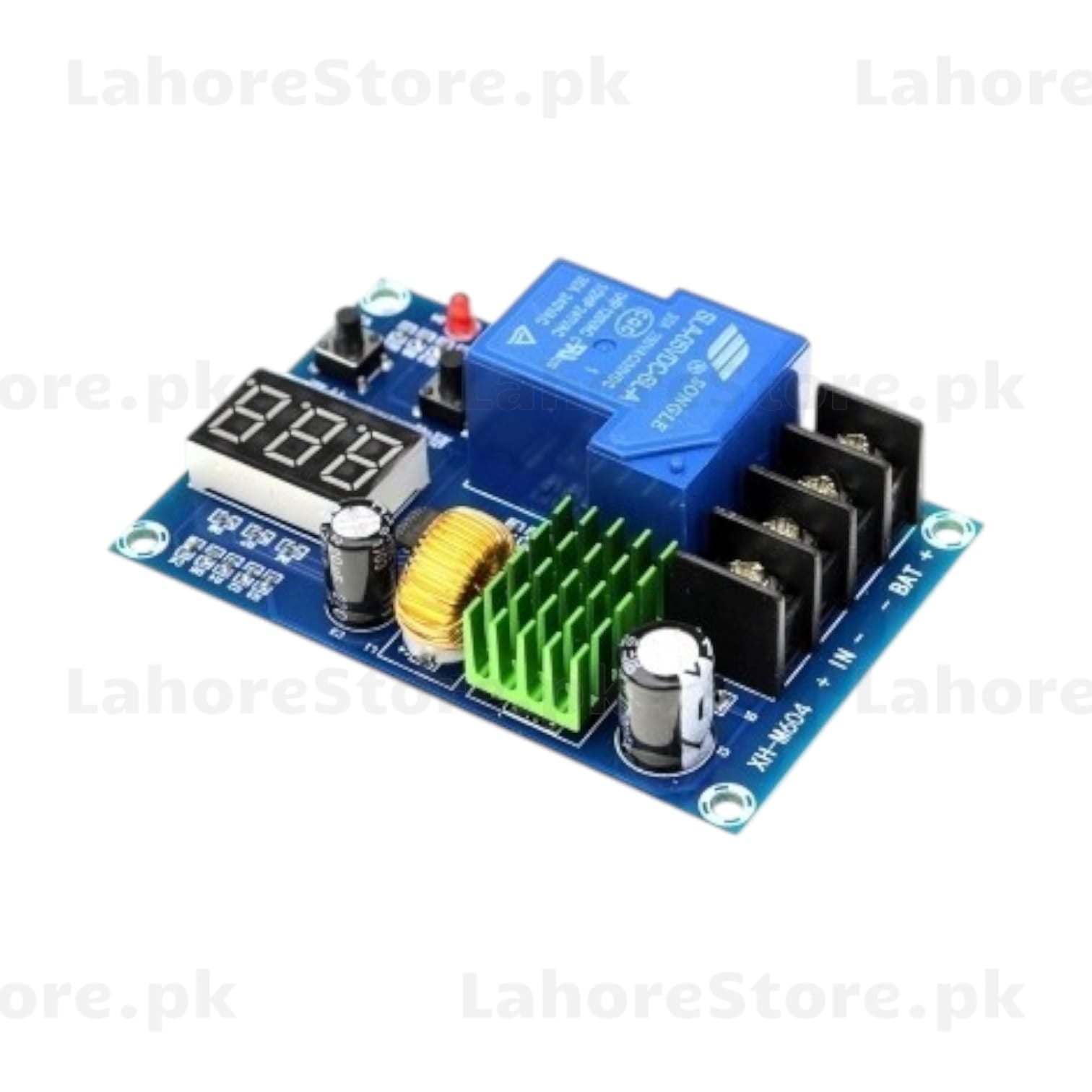

XH-M604 Battery Charger Control Module – 6-60V 30A

XH-M604 Battery Charging Control Module – Smart Automatic Charger Controller

Take full control of your battery charging with the XH-M604 Battery Charger Control Module. This intelligent charging controller automatically manages the charging and discharging process, protecting your batteries from overcharging and over-discharging — extending battery life significantly.

Key Features:

• ⚡ Wide Voltage Range – Supports 6V to 60V battery systems
• 🔋 High Current Capacity – Up to 30A charging current
• 📊 LED Digital Display – Real-time voltage monitoring on 3-digit display
• 🔄 Automatic Control – Auto start/stop charging based on set voltage thresholds
• 🛡️ Overcharge Protection – Automatically cuts off when battery is full
• 🔧 Start/Stop Buttons – Manual override with dedicated push buttons

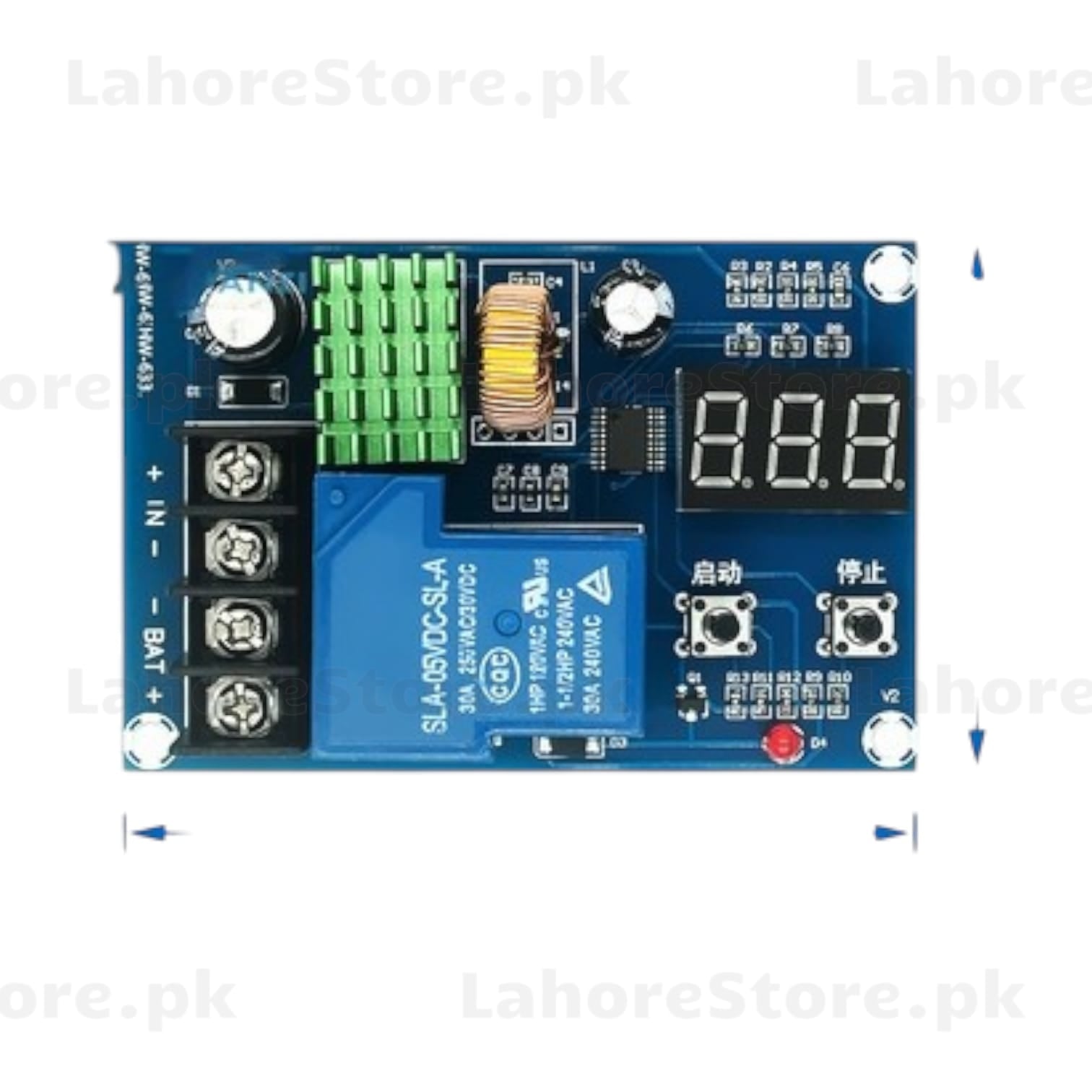

• 📌 Screw Terminal Connections – Easy wiring for IN+ IN- BAT+ BAT-
• 💡 LED Indicator – Red LED shows charging status

Specifications:

• Model: XH-M604
• Input Voltage: 6V – 60V DC
• Max Current: 30A
• Relay: SLA-05VDC-SL-A (30A rated)
• Display: 3-digit LED voltmeter
• Compatible Batteries: Lead-acid, Li-ion, LiFePO4, NiMH

Applications:

Solar battery charging systems, car/motorcycle battery chargers, UPS systems, DIY power banks, and any automatic battery management project.
