XL7015 DC-DC Buck Converter Module (Adjustable Step-Down Voltage Regulator)

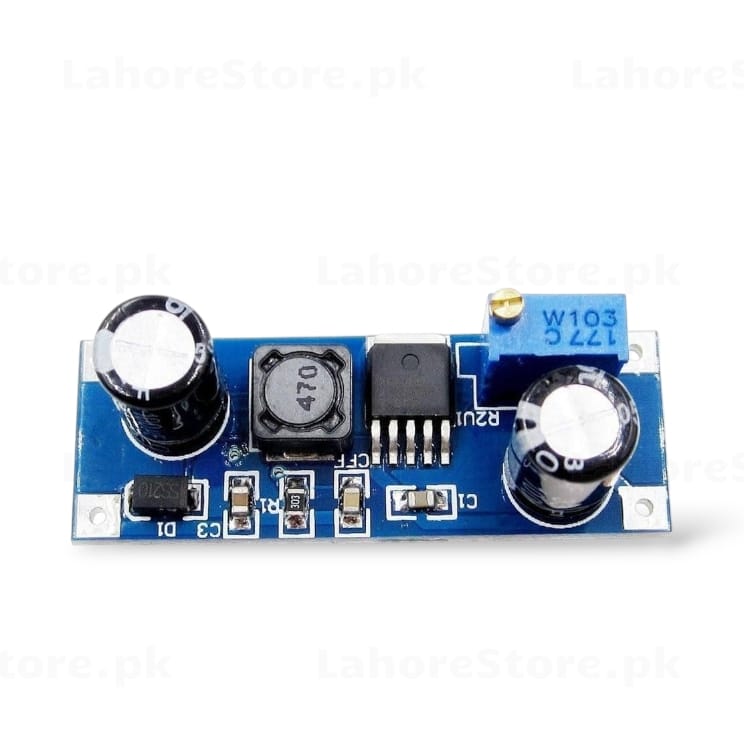

XL7015 DC-DC Buck Converter Module

A compact and efficient adjustable step-down (buck) voltage regulator module based on the XL7015 IC. Ideal for powering microcontrollers, sensors, and other electronics from a higher voltage source with stable, regulated output.

Key Features

• Wide input voltage range: 8V – 80V DC
• Adjustable output voltage: 1.25V – 36V DC (set via onboard potentiometer)
• Maximum output current: up to 0.8A continuous
• High efficiency switching regulator (up to 90%)
• Onboard blue trimmer potentiometer for easy voltage adjustment
• 470µH inductor for stable operation
• Input and output electrolytic filter capacitors for ripple reduction
• Compact PCB size: suitable for embedded projects
• Screw terminal pads for VIN, VOUT, and GND connections

Specifications

• IC: XL7015
• Input Voltage: 8V – 80V DC
• Output Voltage: 1.25V – 36V DC (adjustable)
• Max Output Current: ~0.8A
• Switching Frequency: 150kHz
• Inductor: 470µH
• PCB Color: Blue

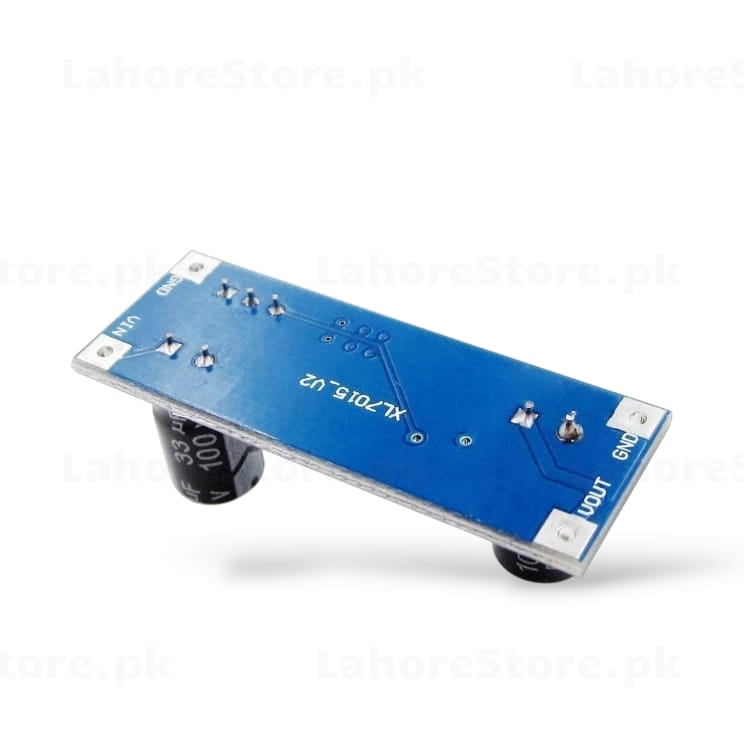

• Board Version: V2

Applications

• Arduino / Raspberry Pi power supply
• Solar panel voltage regulation
• Battery-powered projects
• DIY electronics and prototyping
• LED driver circuits

Package Includes

• 1 × XL7015 DC-DC Buck Converter Module
