XS3868 Bluetooth Audio Receiver Module

XS3868 Bluetooth Audio Receiver Module

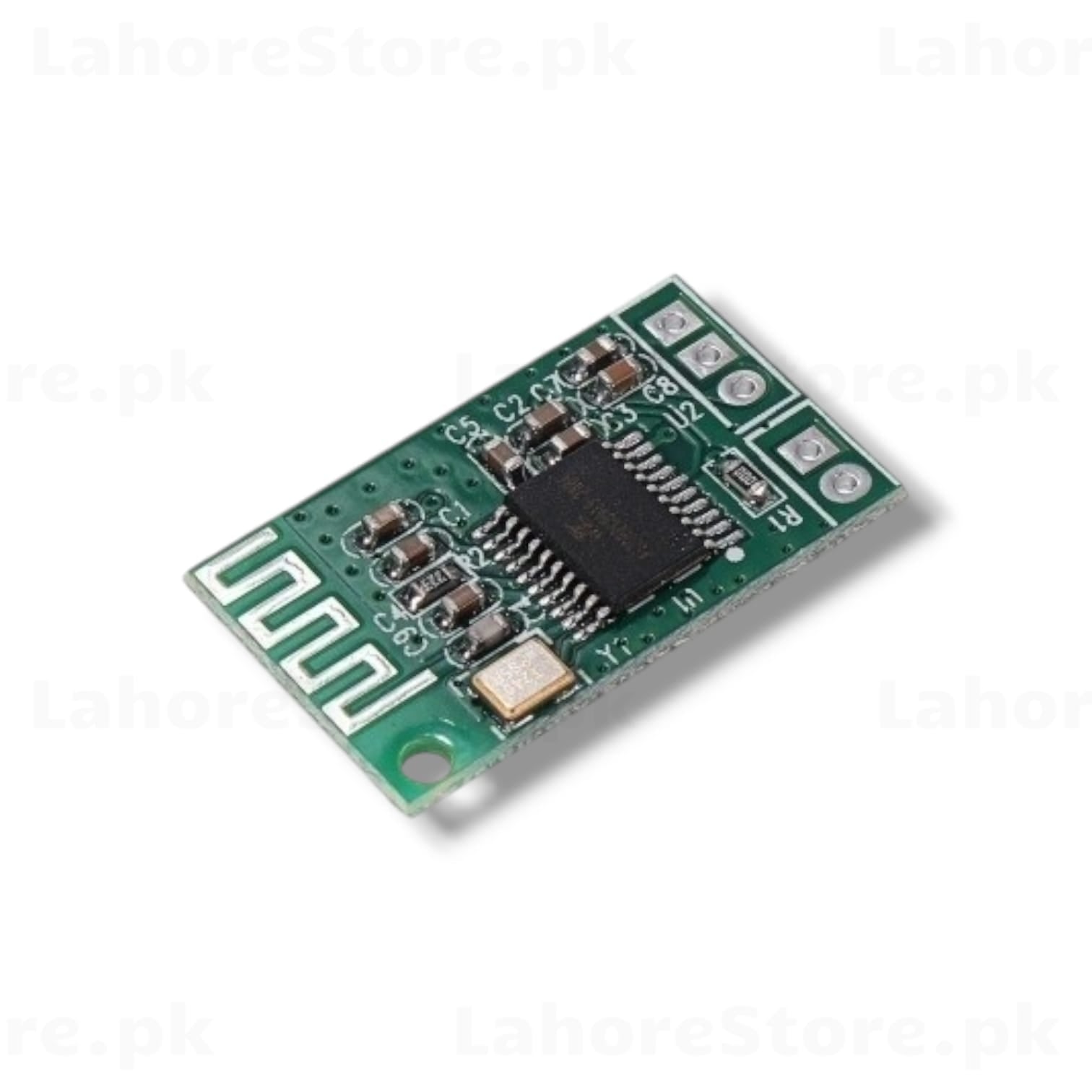

Transform any wired speaker system into a wireless Bluetooth audio setup with the XS3868 Bluetooth Audio Receiver Module. Built around the OVC3860 chip, this compact green PCB module lets you stream high-quality stereo audio wirelessly from any Bluetooth-enabled device — phone, tablet, or laptop.

Specifications

• Chip: OVC3860 Bluetooth Audio SoC
• Bluetooth Version: 2.0 + EDR
• Audio Profile: A2DP (stereo audio streaming), AVRCP (media control)
• Operating Voltage: 3.3V DC
• Output: Stereo analog audio (L/R)
• Antenna: Onboard PCB trace antenna
• Range: Up to 10 meters (open space)
• Interface: UART (for AT commands), I2C, GPIO
• Dimensions: ~28mm x 18mm

Key Features

• Wireless stereo audio streaming via Bluetooth
• Supports AT command configuration via UART
• Compact PCB design — easy to embed in DIY projects
• Onboard crystal oscillator for stable operation
• Low power consumption

Ideal For

• DIY Bluetooth speaker builds
• Wireless audio retrofit for existing speaker systems
• Embedded audio projects with Arduino / STM32
• Home automation audio nodes
