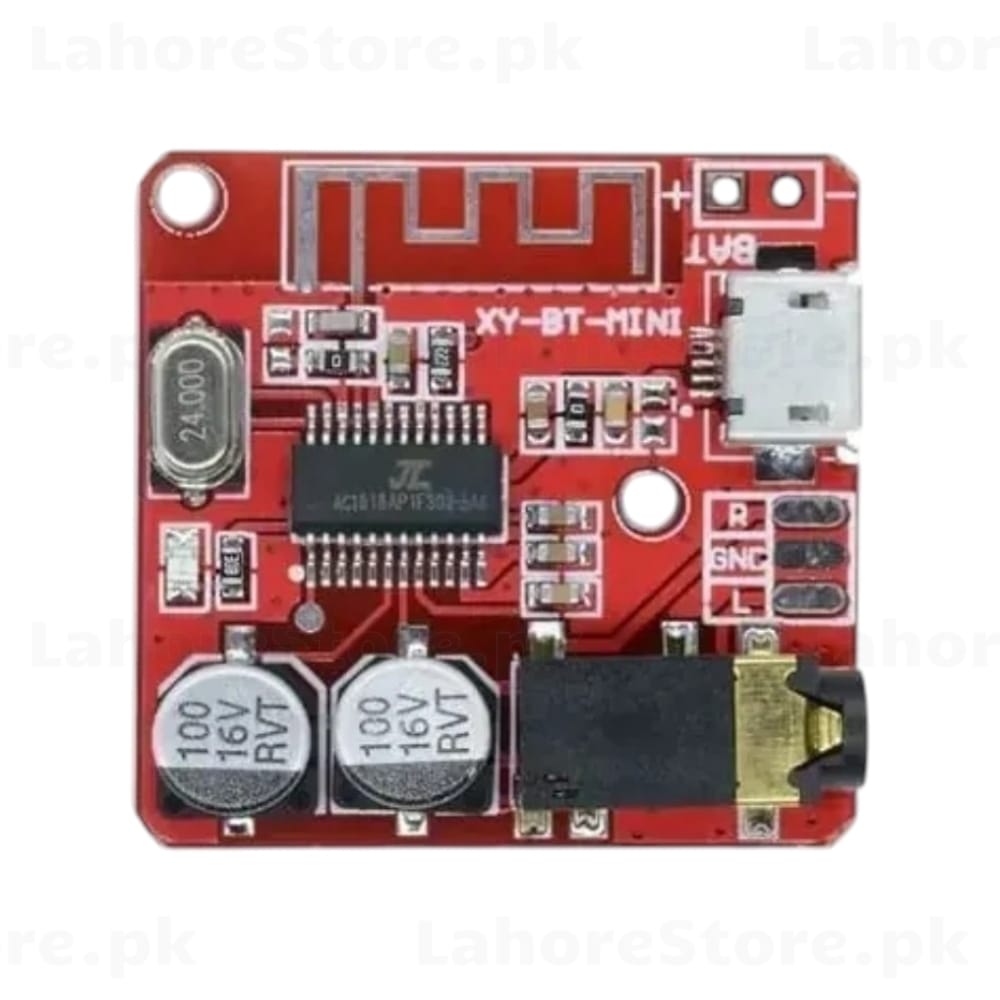

XY-BT-MINI Bluetooth 5.0 Audio Receiver Module

XY-BT-MINI Bluetooth 5.0 Audio Receiver Module

The XY-BT-MINI is a compact, high-quality Bluetooth 5.0 audio receiver module designed for DIY audio projects, speaker upgrades, and embedded audio systems. Simply power it up, pair your device, and enjoy wireless audio through any speaker or amplifier system.

Key Features

• Bluetooth 5.0 — stable, low-latency wireless audio streaming
• Stereo Audio Output — 3.5mm AUX jack + solder pads (L / R / GND)
• Micro USB Power Input — easy 5V USB power supply
• Onboard Antenna — printed PCB antenna for reliable range
• Compact Form Factor — fits easily into enclosures and DIY builds
• Crystal Oscillator — 24MHz for precise, stable Bluetooth operation
• Dual Capacitors — 100µF / 16V for clean, stable audio output

Specifications

• Model: XY-BT-MINI
• Bluetooth Version: 5.0
• Power Supply: 5V via Micro USB
• Output: 3.5mm stereo jack + solder pads
• Operating Range: Up to 10 meters
• PCB Color: Red

Applications

• DIY Bluetooth speaker builds
• Upgrading old wired speakers to wireless
• Embedded audio systems and robotics projects
• Arduino / Raspberry Pi audio projects
